-支持Intel 8-12代CPU
-无风扇工控主机
-尺寸迷你，接口丰富
-7*24h稳定运行
-支持Intel 8-12代CPU
-无风扇工控主机
-尺寸迷你，接口丰富
-7*24h稳定运行
| Product appearance | ||
| Type | Detail | Description |

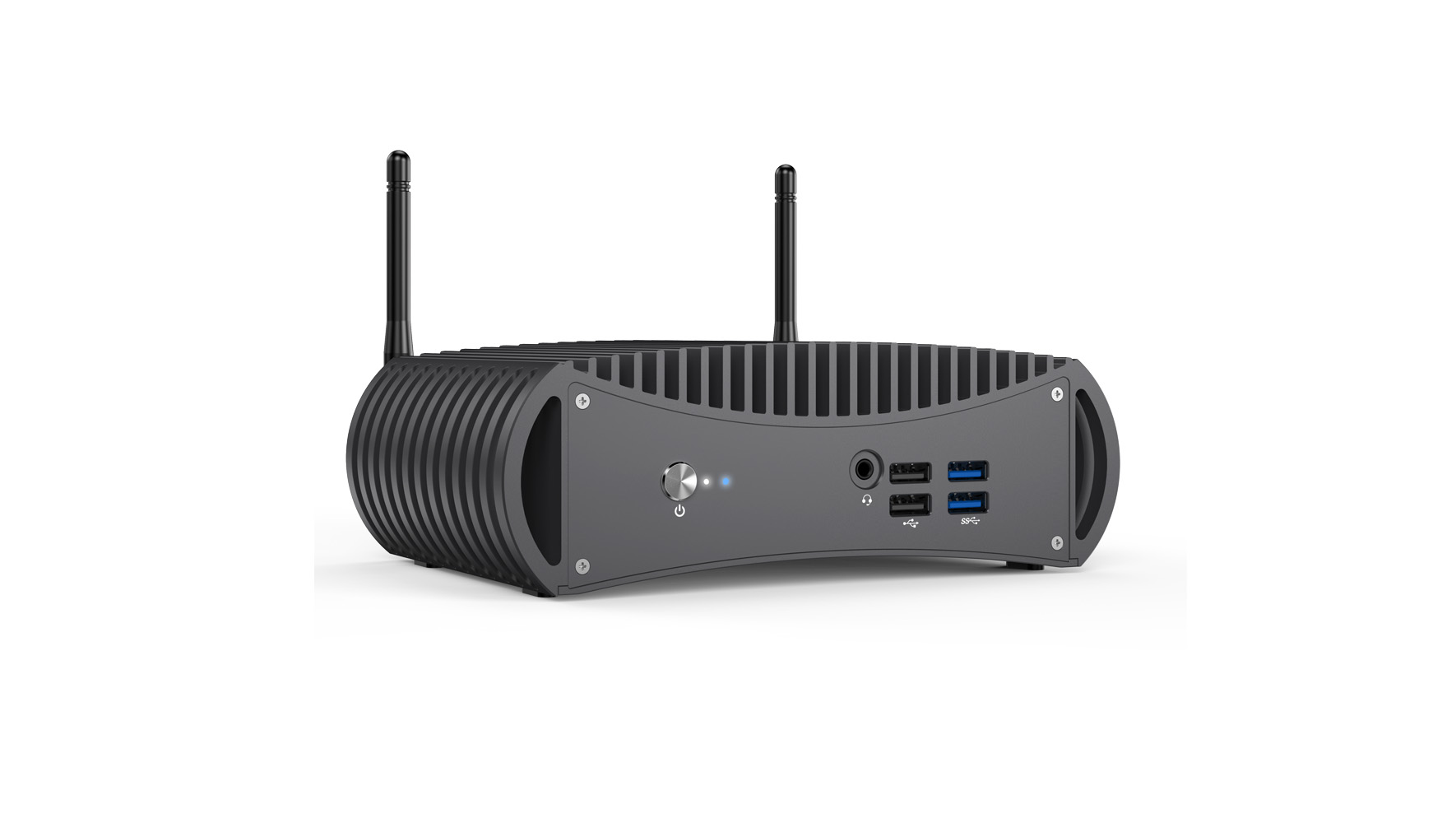

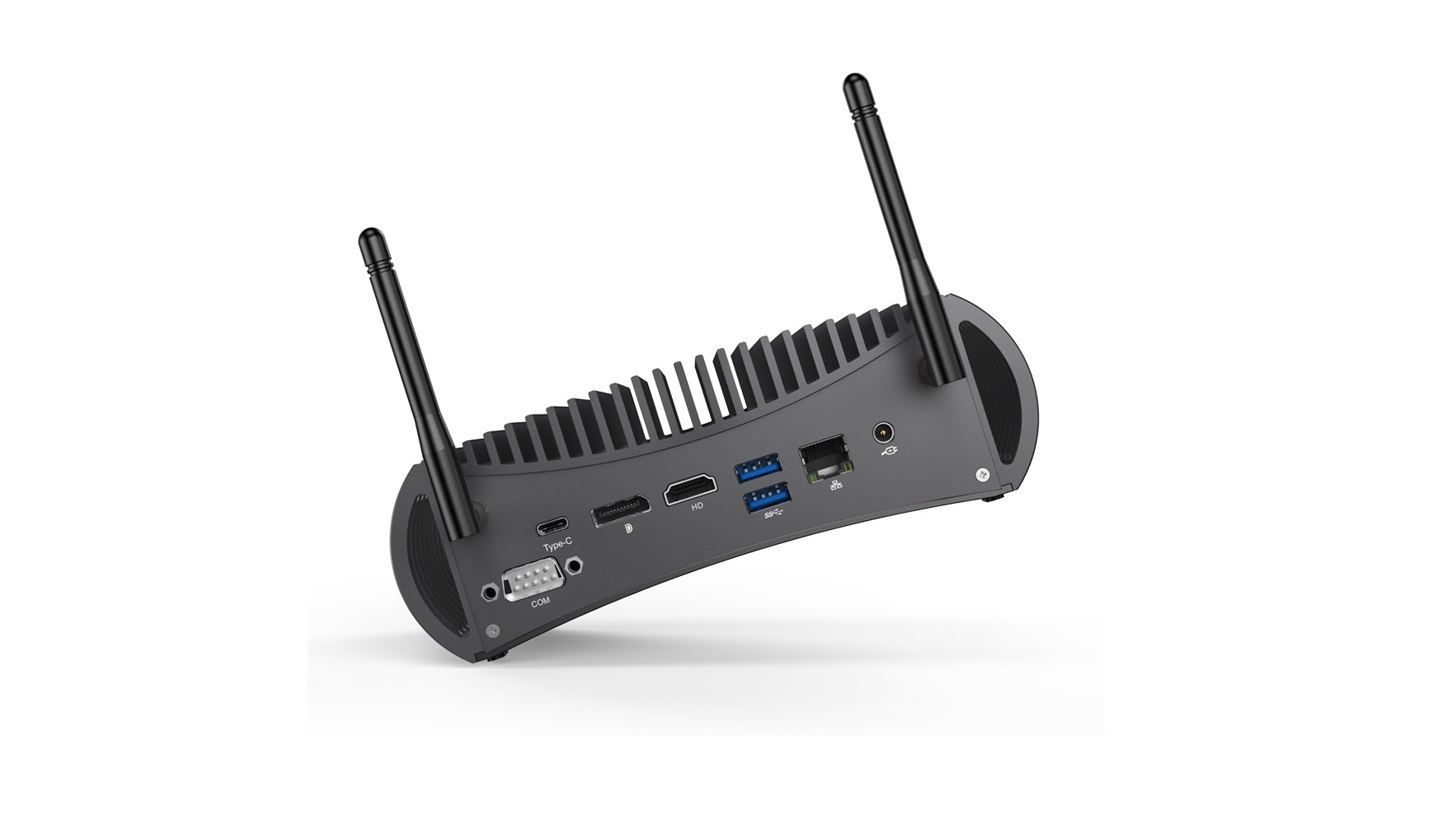

| Product appearance | Product | MINI_PC |
| Size | 190x127x63mm | |
| Weight | about 1.5KG | |
| Specification | ||
| Type | Detail | Description |
| CPU | Tiger Lake | I3-1115G4 (Base Frequency 3.0GHz,Turbo 4.1GHz,2 cores 4 threads,6M Cache) |
| I5-1135G7 (Base Frequency 2.6GHz,Turbo 4.4GHz,4 cores 8 threads,8M Cache) | ||
| I7-1167G7 (Base Frequency 2.8GHz,Turbo 4.7GHz,4 cores 8 threads,12M Cache) | ||
| GPU | Graphics | Intel® Iris® Xe Graphics |
| RAM | 2*DDR4 | 2* SO-DIMM slot support DDR4 up to 64GB |
| SSD | M.2 SSD | 1* M.2 22*80 SSD, (support PCIE*4 and SATA3.0) |
| HDD | SATA | 1*2.5'' SATA |
| Network connection | ||
| Type | Detail | Description |
| WIFI | WIFI module | M.2 interface, Support 802.11B/G & 802.11B/G/N& ac，two Wireless antenna Bluetooth 4.0 2-in-1 WIFI &BT combo card |
| RJ45 | RJ45 | Support RJ45 (100M/1000M) |
| I/O | ||
| Type | Detail | Description |
| USB Port | USB | 2*USB2.0 ，4*USB3.0 |
| Audio | Audio | 3.5mm 1 Jack, MIC in/ Line out |
| LAN | LAN | Support RJ45 (100M/1000M) |
| DC In | DC In | 5.5mm DC IN |
| HDMI | Display output | HDMI 2.0 ，Support 4K |
| DP | Display output | DP ，Support 4K |
| Type C | Thunderbelt 4 | 1.PD power supply 2.Display output3.Expansion dock 4.Data transmission |
| Accessories | ||
| Type | Detail | Description |
| Power adapter | Standard | 19V/65W |
| OS | ||
| Type | Detail | Description |
| OS | OS | Support Win10/Win11，Linux |
