-支持Intel 8/9/10代CPU,4GB独显
-高效散热,强劲性能
-尺寸迷你,接口丰富
-7*24h稳定运行
-支持Intel 8/9/10代CPU,4GB独显
-高效散热,强劲性能
-尺寸迷你,接口丰富
-7*24h稳定运行

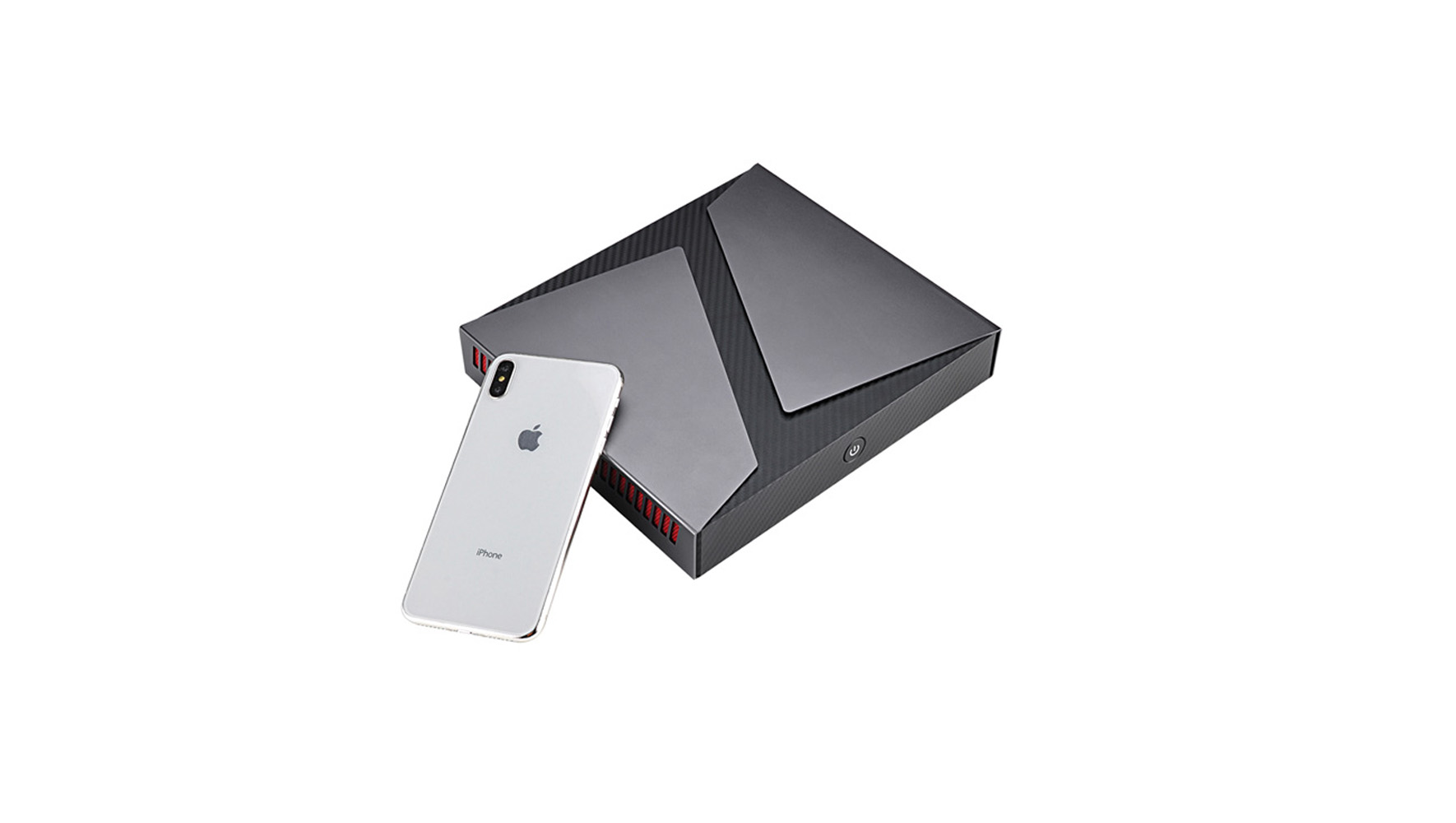

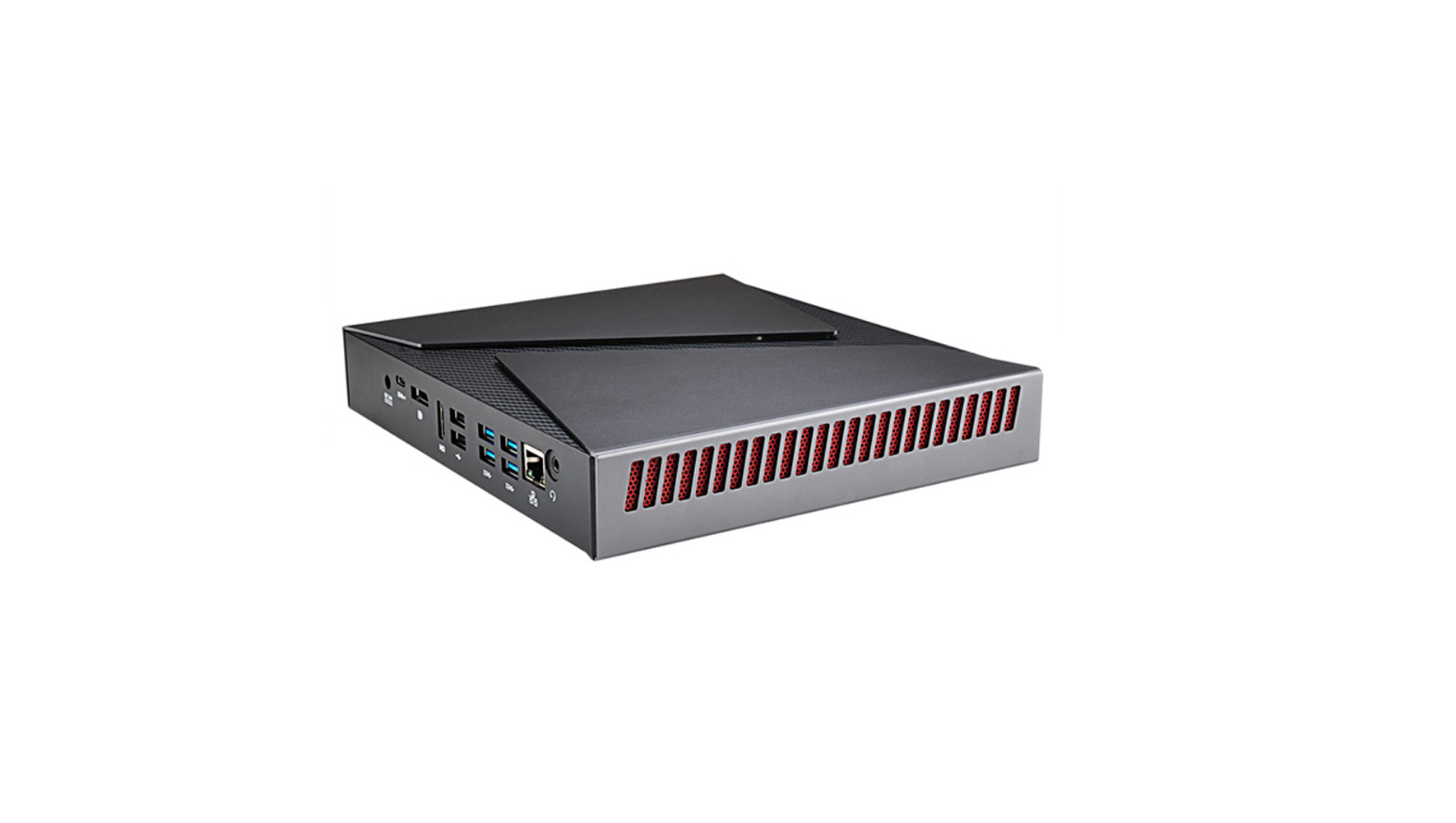

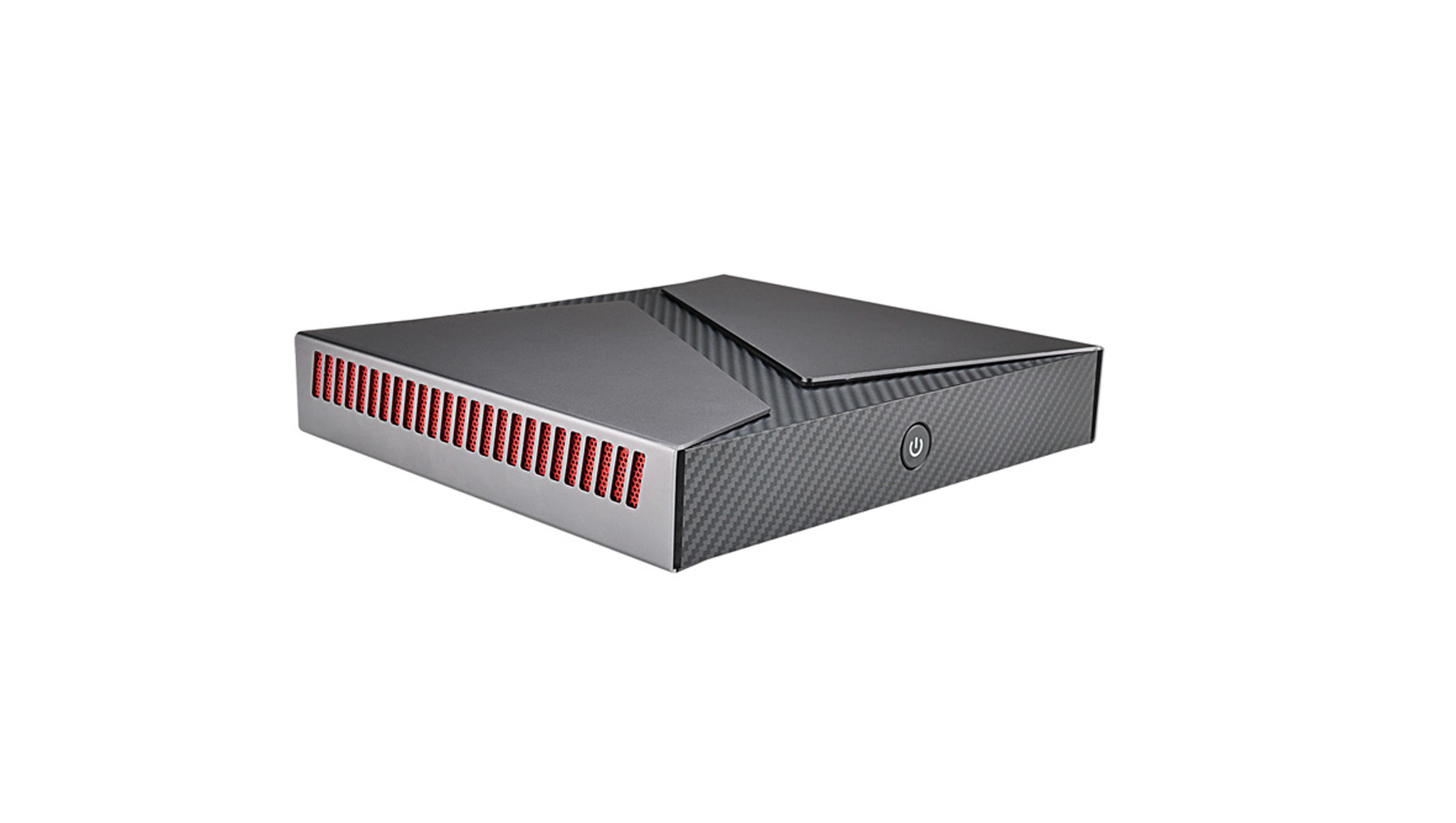

Product appearance | ||
Type | Detail | Description |
Product appearance | Product | MINI_PC |
Size | 222*195*39mm | |
Weight | about 1.3KG | |
Specification | ||
Type | Detail | Description |
CPU | Coffee Lake-H | I5-9300H ,I7-9750H,I9-9880H |
GPU | Graphics | Intel® HD Graphics+NVIDIA GTX 1650 |
RAM | 2*DDR4 | 2* SO-DIMM slot support DDR4 up to 64GB |
SSD | M.2 SSD | Support 1* M.2 22*80 SSD, 1*support PCIE*4 and SATA3.0 |
HDD | SATA | MAX Support 3* 2.5inch 7.0mm SATA HDD/SSD |
Network connection | ||
Type | Detail | Description |
WIFI | WIFI module | M.2 interface, Support 802.11B/G & 802.11B/G/N& ac two Wireless antenna Bluetooth 4.0 2-in-1 WIFI &BT combo card |
RJ45 | RJ45 | Support RJ45 (100M/1000M) |
I/O | ||
Type | Detail | Description |
USB Port | USB | 2*USB2.0 ,4*USB3.0 |
Audio | Audio | 3.5mm 1* Jack, MIC in/ Line out |
DC In | DC In | 5.5mm DC IN |
HDMI | Display output | HDMI |
DP | Display output | DP ,Support 4K |
Type C | USB 3.1 | USB 3.1 |
Accessories | ||
Type | Detail | Description |
Power adapter | Standard | 19V,150W |
OS | ||
Type | Detail | Description |
OS | OS | Support Win8.1/Win10,Linux |
